Network Edge Interface Statistics

Now you can monitor your Network Edge device utilization traffic by accessing your device details.

In your Virtual Device Inventory, click on the device you want to monitor.

In the Device Details, click the Interfaces tab.

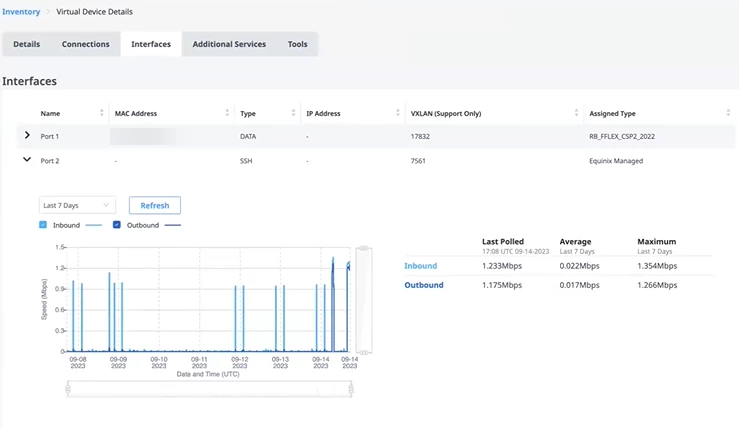

Expand the arrow next to the port you want to monitor and a graph will display showing Inbound and Outbound traffic for the last 7 days.

Refresh the graph by clicking Refresh.

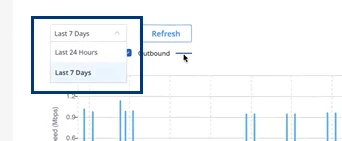

Change the duration using the drop-down. Choose Last 7 days or Last 24 hours.
